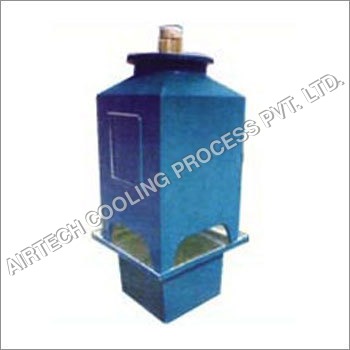

Being a quality-centric organization, we are encouraged by our clients to manufacture, export and supply Square FRP Cooling Tower. The offered tower is widely used for transforming process waste heat to the atmosphere and permits roof installation without any special reinforcement. By making use of supreme quality components, the offered tower is manufactured at our advanced manufacturing unit under the supervision of our adept professionals. Before delivering it to the clients end, our offered tower is checked thoroughly by our quality controllers on various parameters to ensure its functioning. We assure our clients the on-time delivery of this Square FRP Cooling Tower at affordable prices.
Features:
High performance
Durability
Low maintenance
Compact design
Process:
The Cooling Tower consists of Honey comb PVC fills and eliminators in a design that maximizes economy and efficiency and directly driven fan and Motor with spray Nozzles 'Minimum drift Losses'. It is also equipped with a Hot dipped Galvanized hardware with rectangular casing body. This type of cooling towers work on the principle of counter flow.
This means that the water flows down while the air is pulled upwards by a fan. As the water flows further through the system, the air encounters is fresher, in other words cooler and less saturated with moisture.
Technical Specifications:
Model |
Capicity TR |
Dimensions |
Fan DIA mm |
Motor HP |
Motor RPM |
Operating weight (Kg) |
||
Length mm |
Width mm |
Height mm |
||||||
ACT-SC-01 |
10 |
600 |
600 |
2000 |
450 |
1.0 |
1440 |
200 |
ACT-SC 02 |
15 |
750 |
750 |
2100 |
450 |
1.0 |
960 |
275 |
ACT-S0-02A |
20 |
900 |
900 |
2200 |
750 |
2.0 |
1440 |
350 |
ACT-SC-03 |
25 |
900 |
900 |
2200 |
750 |
2.0 |
960 |
425 |
ACT-SQ-04 |
30 |
1200 |
1200 |
2300 |
900 |
2.0 |
960 |
500 |
ACT-SO-05 |
40 |
1200 |
1200 |
2300 |
900 |
2.0 |
960 |
650 |
ACT-SO-06 |
50 |
1500 |
1500 |
2550 |
900 |
3.0 |
960 |
775 |
ACE-SO-07 |
60 |
1800 |
1500 |
2550 |
1000 |
3.0 |
960 |
950 |
ACT-SO-07A |
70 |
1800 |
1800 |
2550 |
1000 |
3.0 |
960 |
1100 |
ACT-SQ-08 |
80 |
2400 |
1800 |
2650 |
1000 |
5.0 |
960 |
1250 |
ACT-SQ-09 |
100 |
2400 |
1800 |
2650 |
1200 |
5.0 |
960 |
1500 |
ACT-SO-010 |
125 |
2400 |
2400 |
2850 |
1500 |
7.5 |
960 |
2000 |
ACT SQ-011 |
150 |
3000 |
2400 |
2850 |
1500 |
7.5 |
960 |
2245 |
ACT-SQ-012 |
175 |
3000 |
3000 |
2850 |
1200 x 2 |
5.0 x 2 |
960 |
2475 |
