We are strictly adhere to the guidelines laid by the international standards industry in order to provide high quality Water Cooled Chilling Plant. This plant is extensively used to improve the chillers' thermodynamic effectiveness for indoor operations and installations to expel heat to the atmosphere. Our offered plant is manufactured at our modern manufacturing unit under the supervision of our veteran professionals using premium grade components and latest tools and technology. The offered Water Cooled Chilling Plant can be owned at rock-bottom prices.
Features:
Compressor: We are using Reciprocating / Scroll / Semi Hermatic compressor of reputed make
Condenser: Compact design shell and tube type. Low Pressure, High Pressure cutout are being provided for the safety of plant. Thermostat being also provided for Electronics / Automatic tripping when temperature get maintained
Chiller: Condensed liquid refrigerant is being expanded in DX Type Chiller through expansion valve. Water is being circulated through Chiller shell side having baffles arrangement, chiller is also being manufactured and tested hydro statically 20 Kg/cm2 pressure.
Description

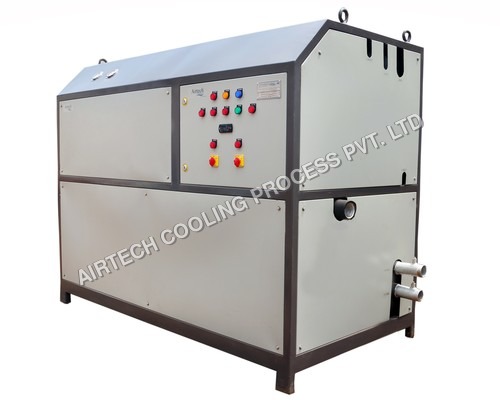

Water cooled Chilling Plant is being manufactured from 3 TR to 250 TR capacity in compact design covering minimum floor area.
Technical Specifications:
Model |
ACHW-3 |
ACHW-5 |
ACHW-7.5 |
ACHW-10 |
ACHW-15 |
ACHW-20 |
ACHW-25 |
ACHW-30 |
Refrigeration capacity |
3TR |
5TR |
7.5TR |
10TR |
15TR |
20TR |
25TR |
30TR |
Chilled water flow (LPH) |
2250 |
3750 |
5625 |
7500 |
11250 |
15000 |
18750 |
22500 |
Temperature Range |
4o-20oC |
|||||||
Power supply |
415V, 50Hz, AC, 3PH |
|||||||
Compressor |
Reciprocating/Scroll/Semi Hermatic/Open Type |
|||||||
Chiller |
Dx-Type |
|||||||
Condenser |
Water Cooled |
